Condensing Steam Turbines
Maximum steam energy utilization for electricity generation. Straight condensing, extraction and double controlled extraction types
What is a Condensing Turbine?
A condensing turbine is capable of maximally utilizing the full energy of the inlet steam flow. Exhaust steam is directed to a condenser where deep vacuum is created, allowing maximum energy extraction from the steam.
This type of turbine is used by energy companies that want to supply consumers with as much electricity as possible. Condensing turbines are the foundation of modern thermal power generation.
Types of Condensing Turbines
Choose the optimal configuration for your needs

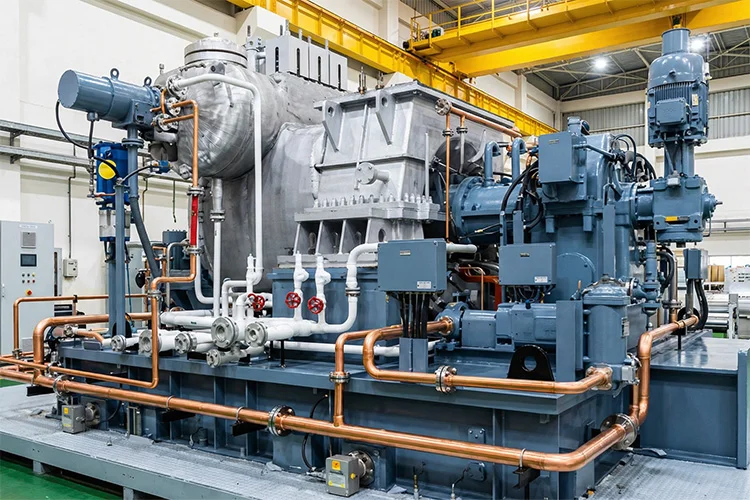

Straight Condensing
Direct CondensationSteam thermal energy is fully converted into mechanical energy (torque). Mechanical energy is used for electricity generation.
- Maximum steam energy utilization
- Application in in-house power stations
- Blowdown use for deaerator
- Optimal for electricity generation

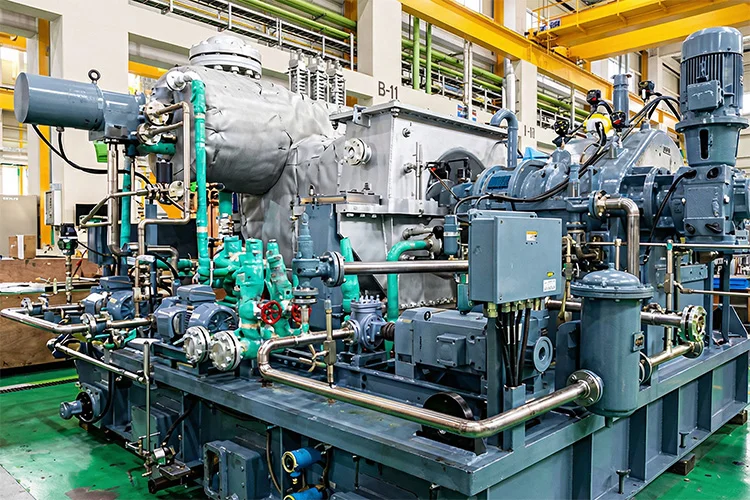

Extraction Condensing
With Controlled ExtractionOne of the most versatile units from an operational standpoint. Provides constant pressure steam through controlled extraction under various turbine load conditions.
- Controlled steam extraction
- Membrane or throttle valves
- Closed-loop feedback mechanism
- Maximum cycle efficiency

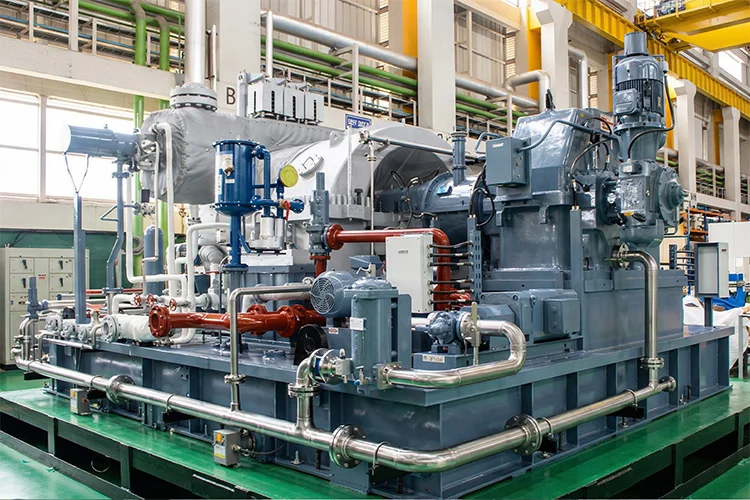

Double Extraction Condensing
Dual Controlled ExtractionSingle-cylinder design with extraction control valves at two different stages to provide constant pressure steam at predetermined values.
- Two extraction pressure levels
- Automatic adjustment
- Operational flexibility
- Optimization for seasonal loads
Operating Principle
How a condensing turbine converts steam energy
Steam Supply
High pressure and temperature steam is supplied to the turbine inlet nozzles
Expansion
Steam expands in the flow path, transferring energy to the rotor blades
Condensation
Exhaust steam enters the condenser where it turns into water
Generation
Torque is transferred to the generator for electricity production
Control System
The control system operates using closed-loop feedback mechanism for precise control of steam parameters and power.
Pressure Measurement
Consumer-side pressure is measured and fed back to the control system
Error Signal
Based on the error signal, the control system actuates the control valve
Control Valves
Membrane or throttle valves change the opening area to regulate pressure
Technical Specifications
High-efficiency solutions for power facilities
Multi-Stage Design
Optimal heat drop distribution across stages for maximum efficiency
Deep Vacuum
Condenser creates vacuum down to 0.03 bar for maximum energy utilization
Controlled Extraction
Automatic extraction pressure maintenance with ±0.5% accuracy
Axial Exhaust
Outlet is parallel to rotor axis for surface condenser connection
Key Advantages
Condensing turbines — the optimal choice for maximum generation
Maximum Generation
Full steam energy utilization ensures maximum electricity generation per unit of steam consumption
Operational Flexibility
Ability to operate in a wide load range while maintaining high efficiency
Controlled Extraction
Precise control of pressure and flow rate of extracted steam for process needs
High Efficiency
Condensing cycle provides maximum thermodynamic efficiency
Long Service Life
Designed service life over 200,000 hours with proper operation
Automation
Modern control systems with closed-loop feedback
Wide Range
Power from 4 to 120 MW for various industrial and energy applications
Turnkey Solutions
Supply with condenser, oil system and automation
Frequently Asked Questions
We've collected answers to the most common questions from our clients. If you haven't found an answer to your question — contact us.
A condensing turbine fully utilizes steam energy by directing exhaust steam into a condenser under vacuum. A backpressure turbine releases steam at elevated pressure for use in technological processes. Condensing turbines provide maximum electricity generation.
Condensing turbines are used at power plants where the main goal is maximum electricity generation. They are also used at industrial facilities as in-house power stations (IPS) to ensure independent power supply.
An extraction condensing turbine allows extracting part of the steam at an intermediate stage for process needs, while the remaining steam is directed to the condenser. This provides flexibility in simultaneous production of electricity and process steam.
Double controlled extraction turbines allow obtaining steam at two different pressures for different technological processes. This is a universal solution for enterprises with diverse steam and electricity needs.
