Steam Turbine Condensers
High-efficiency surface condensers of various designs for steam turbines with optimal technical characteristics
About Steam Turbine Condensers
Steam turbine condenser is a key element of thermal power plants, designed for condensation of exhaust steam from the turbine and creating vacuum that increases the efficiency of the entire power unit. The economy and stability of the entire power plant directly depend on the quality and reliability of the condenser.
RUSTRADE LLC offers surface condensers of various designs with the following key advantages:
- Optimal design – condensers with single-, double- or four-pass configurations adapted to specific operating conditions
- High efficiency – maximum heat transfer with minimum hydraulic resistance
- Reliability – use of high-quality materials resistant to various working environments, including seawater
- Ease of maintenance – special design solutions allowing service maintenance without complete equipment shutdown
Our condensers are manufactured according to customer's individual technical specifications, which allows optimal integration into existing or designed energy systems with maximum efficiency.
Types and Modifications of Condensers
Variety of design configurations for optimal compliance with technical requirements of various power plants
Design Configuration
Single, double or four-pass design adapted to specific customer requirements and turbine features
Flow Arrangement
Single or double-flow design for optimal working medium flow organization and maximum heat exchange efficiency
Heat Exchange Surface
Heat exchange surface range from 500 to 15,000 m², allowing optimal solution selection for turbines of various power
Cooling Water Type
Special materials and design solutions for operation with both fresh and seawater considering specific site features
Technical Specifications
Professional equipment designed to meet all energy industry requirements
High Heat Exchange Efficiency
Optimized heat exchange surfaces from 500 to 15,000 m² ensure maximum steam condensation
Long Service Life
Designed condenser service life is at least 40 years when operating rules are followed
Corrosion Resistance
Special materials for operation with seawater and freshwater, including copper-nickel and titanium alloys
Minimum Hydraulic Resistance
Optimized cooling water channels ensure electricity savings on pumping
Selection Calculator
Preliminary calculation of optimal condenser model
Calculation Parameters
Recommended Condenser
What does the calculator compute?
- Condenser model — optimal size from KP/KG series for your turbine
- Heat exchange surface — calculated area in m² for efficient steam condensation
- Water flow rate — required cooling water volume in m³/h
- Condenser weight — approximate equipment weight for foundation design
How to use
Enter turbine power (MW) and select cooling water type. The calculator will automatically select the optimal condenser model taking into account the seawater coefficient.
Results are preliminary. For accurate calculation, please contact our specialists.
Technical Advantages
Innovative design solutions ensuring high efficiency and reliability of condensers
Double-flow Design
Allows service maintenance and tube bundle cleaning of one flow without equipment shutdown, significantly improving economic performance
Spring Supports
Provide thermal expansion compensation without need for additional compensating devices, simplifying installation and operation
Special Materials
Application of materials resistant to various working environments, including corrosion-resistant alloys for seawater and aggressive media operation
Configuration and Delivery
Maximum factory readiness for quick installation and commissioning

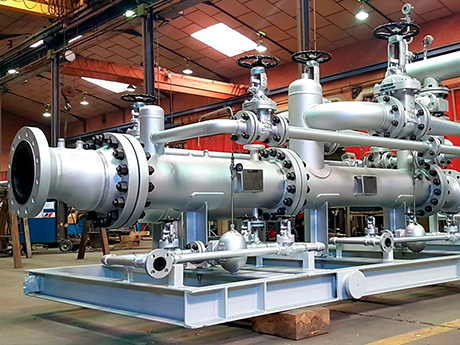

Maximum Factory Readiness
Condensers are supplied with maximum factory readiness, significantly reducing on-site installation time and accelerating commissioning.

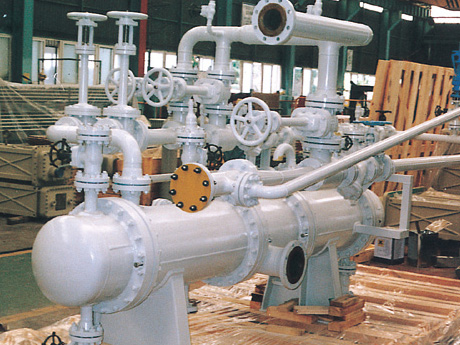

Ejector Package
Option of package with startup and main two-stage steam jet ejector for creating and maintaining required vacuum in the condenser.

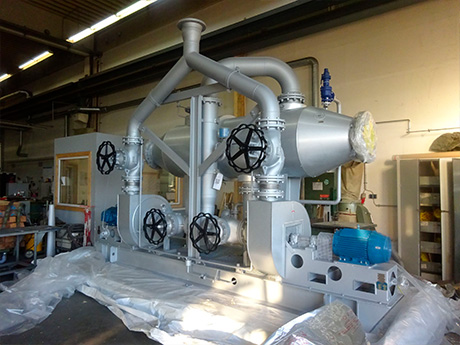

Reduced Installation Time
Well-thought design solutions and high factory readiness ensure significant reduction in installation and commissioning time.
Advantages of Working With Us
Professional team of engineers and technologists with extensive experience in power equipment manufacturing
High Quality
We use advanced technologies and materials ensuring durability and reliability of equipment
Modern Equipment
Production is equipped with high-precision equipment from leading global manufacturers
Standards Compliance
All products meet GOST, ISO and international quality standards requirements
Deadline Compliance
Strict adherence to agreed manufacturing and delivery deadlines
Trusted by
FAQ
Frequently asked questions about steam turbine condensers
The calculated service life of condensers is at least 40 years with proper operation and regular maintenance. Warranty period is 24 months from commissioning.
Yes, our specialists adapt the condenser design to existing connection dimensions and support locations. If necessary, site inspection is performed to accurately determine all parameters and installation features.
For seawater operation, we use tubes made of special alloys with high corrosion resistance, such as MNK 70/30 (copper-nickel alloy), special grade stainless steel or titanium alloys. Material selection depends on specific operating conditions and customer requirements.
Manufacturing time depends on the size and complexity of the condenser and ranges from 6 to 12 months from technical specification approval. Production acceleration is possible when urgent equipment replacement is needed.
The calculator provides a preliminary estimate with ±15% accuracy. Results are based on standard parameters of KP/KG series condensers. For accurate calculation, the following must be considered: turbine exhaust steam pressure, cooling water temperature and quality, required vacuum, station operating mode. Our engineers will perform detailed thermal-hydraulic calculation free of charge.
When using seawater, a coefficient of 1.15 is applied to the calculated flow rate. This is due to: lower heat capacity of seawater due to salts, need to reduce flow velocity to minimize tube corrosion, consideration of biofouling and clogging. Special corrosion-resistant materials (copper-nickel alloys, titanium) are also used, affecting the design.
The model is selected by turbine power: up to 25 MW — KP-2000, up to 50 MW — KP-3500, up to 100 MW — KG-6200, up to 200 MW — KG-10000, over 200 MW — KG-15000. The number in the name indicates heat exchange surface in m². Final model selection is made after detailed calculation considering all your turbine unit parameters.
Yes, we design condensers to individual requirements. You can change: heat exchange surface, tube and tubesheet material, design configuration (1/2/4-pass), flow arrangement (1 or 2 flows). The calculator provides a starting point, final parameters are agreed with our engineers.
